NEW! H-Bridge Arduino Shield

Our new H-bridge Arduino Shield can drive motors or other loads. The board uses NVE isolators and isolated DC-to-DC convertors for exceptional performance and miniaturization.

H-bridge Arduino Shield


The board is rated at 40 volts and 50 amps to control up to two-kilowatt loads. It has everything you needed—just add an Arduino and a power supply.

Key Features
   Standard Arduino Shield form factor outline
   A simple three-wire Arduino interface (PWM, Dir, and Enable)
   Thermal vias and heat-sinking
   EMI mitigation
   Easy connections with large screw terminals

Specifications
   Max. load: 2 kW (40 V / 50 A)
   Load supply line: 8 V to 40 V
   Arduino input supply: 7 V to 18.5 V, 500 mA max.
   Logic-to-load isolation: 2.5 kV per UL 1577
   Rds On: 1.2 mΩ typ. each MOSFET
   Operating Temperature Range: -40 °C to 85 °C
   Dimensions: 2.1 in. by 2.7 in. (53.4 mm by 68.6 mm)

Applications
   Motor speed and direction control
   Robotics
   DC-to-AC invertors

Documentation and Arduino Libraries
You can download datasheets, manuals, and an Arduino demonstration program from our GitHub Repository.

In Stock
Shields are in stock for immediate delivery.

Demonstration

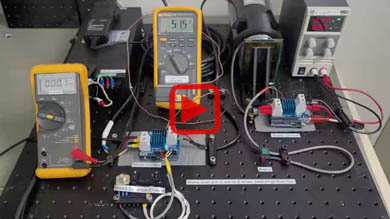

We demonstrated two Shields controlling an ebike motor and electric brake:

ALT023 Demo
